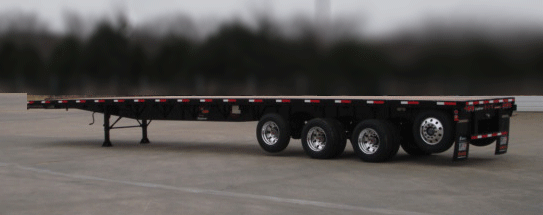

FLAT BED TRAILERS​

1/3

Frame:



• 24 3/4" Deep Fabricated Steel Beam

   o 3/8" x 5" 130k p.s.i. Minimum Yield Flanges

   o 3/16" 80k p.s.i. Minimum Yield Web

• 6" Structural Side Rail

• Crossmembers - 16" Centers, 4" Jr. I Beams 3/8" x 2 1/2" Rub Rail

• 1 1/4" Pipe Spools Between Stake Pockets

• 36" Kingpin Setting

• 48" 5th Wheel Height

• High Strength Fabricated Knee Braces



Undercarriage (Subject to Change):

• AIR RIDE OR SPRING SUSPENSION

• 5" Round Axles - 25,000 # Capacity

• 30/30 Spring Brakes

• 16.5" x 7" Cam Operated “Q” Type Shoes (Automatic Slacks, Outboard Drums)

• Steel Disc Wheels

• Radials



Landing Gear:



• 2 Speed 50,000 Lbs.

Electrical:



• Grote Sealed Light System - 7 yr. warranty

• 3 Tail Lights Each Side

• Mid-Turn Signal Both Sides

• Front and Rear Marker Lights

• All lights LED

• 7-Way Socket

• Wabco Anti-Lock Brake System



Finish:



• All Metal Surfaces - Cleaned, Phosphatized and Painted with a 2-Part Urethane

• Standard Color: Black (Other Colors Upon Request)

• Mud Flaps – Aztec Mudflaps Heavy Duty

• DOT Standard Reflective Tape

• Heavy Duty Dock Bumpers

• Conspicuity Tape



Flooring:



• 1 1/8" “One Piece” Apitong Attached with 5/16" Floor Screws



Options:



Ask About Our Many “Non-Standard” Models As Well As Optional Equipment
